SmartSolar MPPT 75/10 Retail | Victron SCC075010060R
Special Price
$62.05
Regular Price
$73.00
SKU
Brand: Victron EnergyQty In Stock: 7
VICTRON-SCC075010060R

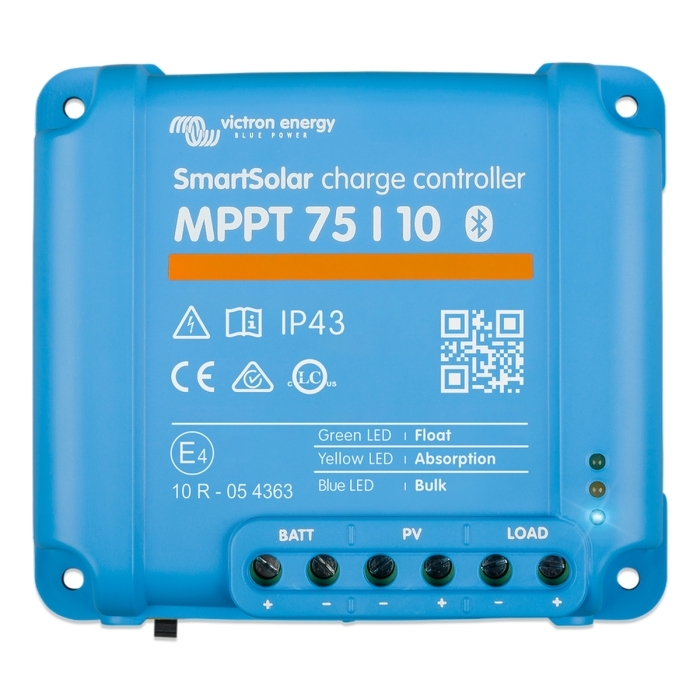

SmartSolar MPPT 75/10 Retail
SmartSolar MPPT 75/10 Retail | Victron SCC075010060R is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 7 |
| Wisconsin | 0 |
- Battery Voltage 12/24V
- Rated charge current 10A
- Nominal PV power 12V 145W
- Nominal PV power 24V 290W
- Max. PV short circuit current 13A
- Automatic load disconnect Yes
- Max. PV open circuit voltage 75V
- Peak efficiency 98%
- Self-consumption – load on 12V: 19 mA 24V: 16 mA
- Self-consumption – load off 12V: 10 mA 24V: 8 mA
- Charge voltage 'absorption' 14,4V / 28,8V (adjustable)
- Charge voltage 'float' 13,8V / 27,6V (adjustable)
- Charge algorithm multi-stage adaptive
- Temperature compensation -16 mV / °C resp. -32 mV / °C
- Max. continuous load current 15A
- Low voltage load disconnect 11,1V / 22,2V / 44,4V or 11,8V / 23,6V / 47,2V or Battery Life algorithm
- Low voltage load reconnect 13,1V / 26,2V / 52,4V or 14V / 28V / 56V or Battery Life algorithm
- Protection Output short circuit / Over temperature
- Operating temperature -30 to +60°C (full rated output up to 40°C)
- Humidity 95%, non-condensing
- Data communication port VE.Direct (see the data communication white paper on our website)
| Manufacturer Part No. | SCC075010060R |
|---|---|
| Brand | Victron Energy |
| Shipping/Dimensional Weight | 0.360000 |
| Actual Weight | 0 |
| Availability | In Stock |
| Special Price | $62.05 |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
