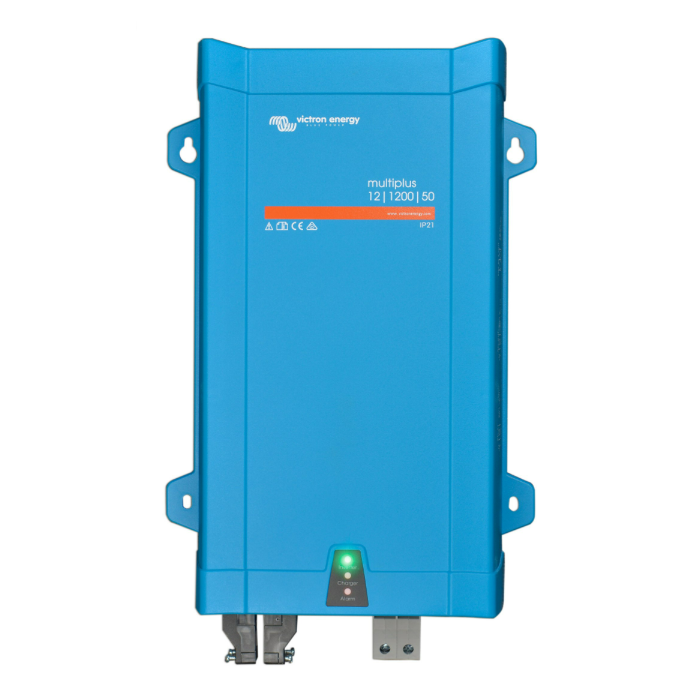

MultiPlus 12/1200/50-16 120 volt VE.Bus | Victron PMP122120100

DC Input Voltage Range: 9.5 – 17 volt

AC Output Voltage: 120 volt ±2%

AC Output Frequency: 60 Hz ±0.1%

Continuous Output Power at 25°C: 1200 VA

Continuous Output Power at 25°C (Watts): 1000 watt

Continuous Output Power at 40°C: 900 watt

Continuous Output Power at 65°C: 700 watt

Peak Power: 2400 watt

Maximum Efficiency: 93%

Zero-load Power: 11 watt

Zero-load Power in Search Mode: 4 watt

AC Input Voltage Range: 95 – 140 volt

AC Input Frequency Range: 55 – 65 Hz

Charge Voltage ‘Absorption’: 14.4 volt

Charge Voltage ‘Float’: 13.2 volt

Storage Mode: 13.2 volt

Charge Current House Battery: 50 amp

Battery Temperature Sensor: Yes

Programmable Relay: Yes

VE.Bus Communication Port: 1x RJ45 port, used for remote monitoring and system integration

Remote On-Off: Yes

DIP Switches: Yes

Internal DC Fuse: 200 amp

Operating Temperature Range: -40 to +65 °C (fan assisted cooling))

Maximum Humidity (Non-Condensing): 95%

Protection Category: IP 21

Battery Connection: 35mm²

AC Connection: G-ST18i connector

Weight: 8.2 kilogram (18.1 pound)

Dimensions (H x W x D): 406 x 250 x 100 mm (15.98 x 9.84 x 3.94 inch)
