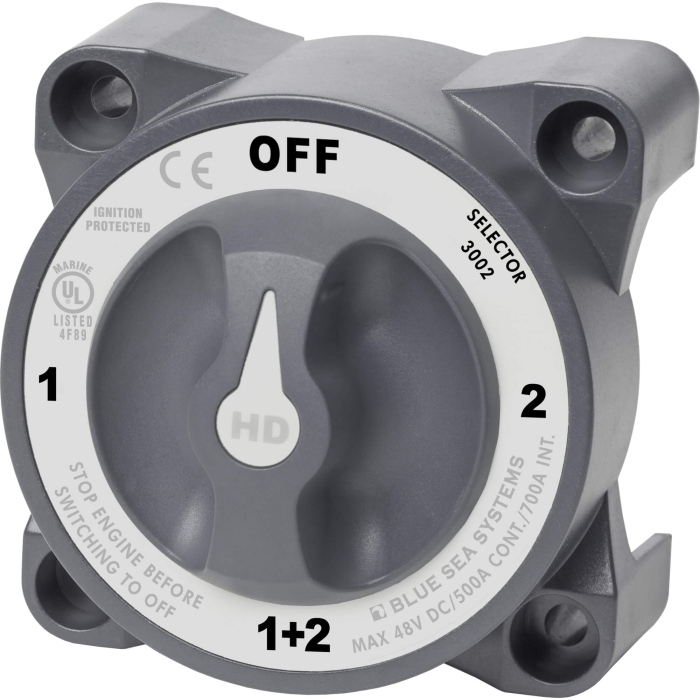

HD-Series Heavy Duty Selector Battery Switch | Blue Sea 3002
Special Price
$120.32
Regular Price
$160.01
SKU
Brand: Blue Sea SystemsQty In Stock: 1
BLUE-3002
HD Series Heavy Duty Selector 4 Position Battery Switch
HD-Series Heavy Duty Selector Battery Switch | Blue Sea 3002 is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 1 |
| Wisconsin | 0 |
- HD Series Heavy Duty Selector 4 Position Battery Switch
- Switches isolated battery banks to all loads or combines battery banks to all loads
- Make-before-break contact design allows switching between battery banks without power interruption
- Meets American Boat and Yacht Council (ABYC) requirements for battery switches
- Ignition protected?safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm?) battery cables
- Cranking rating: 10 sec. 2 750As
- Cranking rating: 1 min. 1 150A
- Intermittent rating: 5 min.700A
- Continuous amperage: 500A
- Maximum voltage rating: 32V DC
- Terminal stud size: 1/2 in. (M12)
- Terminal stud torque: 220 in.-lbs. (24.86 N?m) max.
- Mounting holes accept 1/4 in. (M6) screw
- Cable size to meet ratings 4/0 AWG (95mm?)
- Cable quantity to meet ratings two cables / terminal
- Cable clearance for 4/0 AWG cables 1.10 in. (27.9mm)
- Weight lbs. (Kg) 1.25 (0.57)
| Manufacturer Part No. | 3002 |
|---|---|
| Shipping/Dimensional Weight | 3.000000 |
| Actual Weight | 1.25 |
| Brand | Blue Sea Systems |
| Availability | In Stock |
| Special Price | $120.32 |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
| Notice | WARNING - This product can expose you chemicals which are known to the State of California to cause cancer and birth defects or reproductive harm. For more information go to www.P65warnings.ca.gov. |
