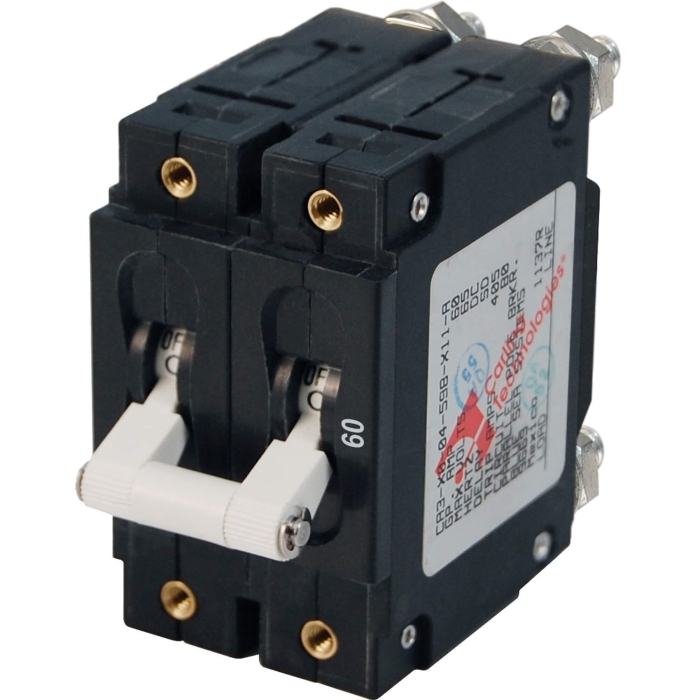

60 Amp C-Series Toggle Circuit Breaker
Special Price
$86.99
Regular Price
$115.28
SKU
Brand :Blue Sea SystemsQty In Stock: 3BLUE-7254
White handle double pole circuit breaker with 1/4-20 stud terminal connections is used for 120/240 volt AC main circuit protection to switch hot & neutral.
60 Amp C-Series Toggle Circuit Breaker is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 3 |
| Wisconsin | 0 |
- C-Series circuit breaker
- 60 amps AC rating
- Double pole
- White toggle handle
- Combines switching and circuit protection into a single device
- Magnetic hydraulic trip-free design cannot be held ON during fault current condition
- For AC main circuit protection to switch hot and neutral or to switch 2 hots in 120/240 volt AC branch applications
- Trips both poles if one pole trips
- 80 volts DC maximum voltage
- 240 volts AC maximum voltage
- #6-32 mounting screws included
- 1/4-20 tin plated brass terminal studs
- 5,000 amps interrupt capacity @ 65 volts DC
- 5000 amps interrupt capacity @ 125/250 volts AC
- 5000 amps interrupt capacity @ 250 volts AC
- Rated for 10,000 switching cycles @ rated amperage and voltage
- 1.5 in. width x 2.5 in. height x 2.475 in. depth
- Meets ABYC standards
- UL 1077 recognized
| Manufacturer Part No. | 7254 |
|---|---|
| Shipping/Dimensional Weight | 3.000000 |
| Actual Weight | 3 |
| Brand | Blue Sea Systems |
