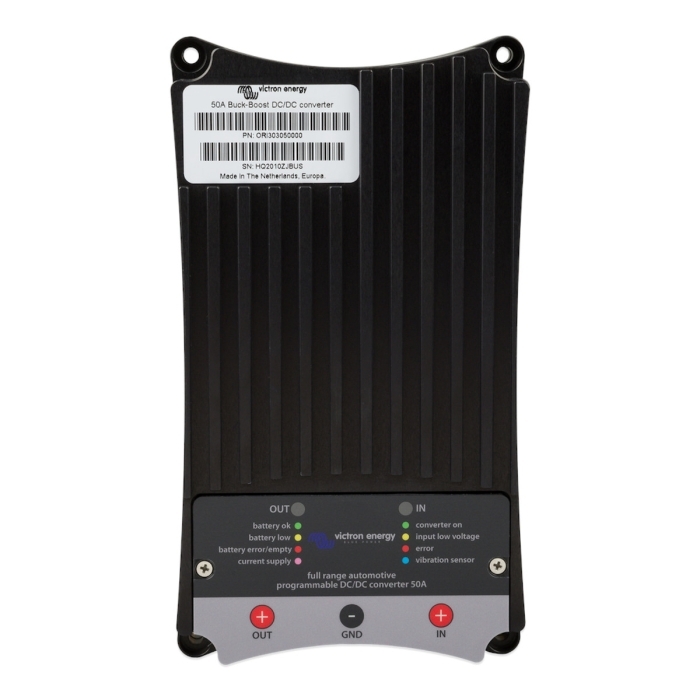

50A Buck-Boost DC/DC Converter | Victron ORI303050000
Special Price
$673.20
Regular Price
$792.00
SKU
Brand: Victron EnergyQty In Stock: 0
VICTRON-ORI303050000
50A Buck-Boost DC/DC Converter
50A Buck-Boost DC/DC Converter | Victron ORI303050000 is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 0 |
| Ohio | 0 |
| Tennessee | 0 |
| Wisconsin | 0 |
- DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator (regenerative braking, Euro 5 and Euro 6 engines)
- The Buck-Boost DC-DC Converter is a DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator
- The converter will charge the auxiliary battery with a pre-set charge voltage, eliminating high voltages (e.g. Mercedes: 15,4V) and low voltages
- ‘Engine running’ detection system
- Deep discharge of the vehicle's starting battery is avoided by a built-in ‘engine running’ detection system
- Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus or (+)15 connection)
- Fully programmable
- The converter can be fully programmed by means of a simple and user-friendly PC application. (USB type A male to USB type B male cable needed)
- One product for 12V, 24V and 12/24V systems
- The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery
- Charge current and input current limiter
- The output current is determined by the following factors:
- The maximum charge current setting
- The maximum input current setting
- The maximum operating temperature limit of the converter
- The output current is determined by the following factors:
- Input status indication (LED)
- Green: converter on
- Yellow: input voltage below threshold, converter off
- Red: over temperature, converter off
- Blue, quick flash: engine running, converter will start after preset delay
- Blue, slow flash: the converter is OFF and activation is blocked due to low input voltage
- Output status indication (LED)
- Green: converter off, battery voltage normal
- Yellow: converter off, battery voltage low
- Red: converter off, battery discharged or not connected
- Purple: converter on.
| Manufacturer Part No. | ORI303050000 |
|---|---|
| Brand | Victron Energy |
| Shipping/Dimensional Weight | 1.390000 |
| Actual Weight | 0 |
| Availability | Out of Stock |
| Special Price | $673.20 |
| Ships free when order qualifies | Yes |
| Hazmat Fee | No |
