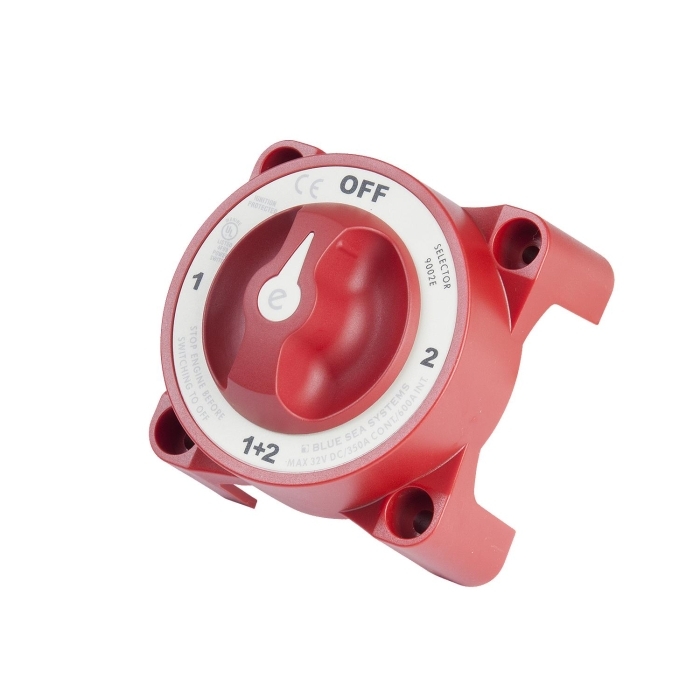

E-Series Battery Selector Switch With AFD | Blue Sea 9002E
Special Price
$58.02
Regular Price
$76.25
SKU
Brand: Blue Sea SystemsQty In Stock: 5
BLUE-9002E
Switches isolated battery banks to all loads or combines battery banks to all loads for inboard gasoline or diesel engine applications.
E-Series Battery Selector Switch With AFD | Blue Sea 9002E is available to buy in increments of 1
| Warehouse | Available |
| Florida | 0 |
| Michigan | 2 |
| Ohio | 0 |
| Tennessee | 3 |
| Wisconsin | 0 |
- Blue Sea 4 position battery switch with alternator field disconnect
- e Series
- Switch allows the selection, disconnection, or combination of 2 battery banks
- Make-before-break contact design allows switching between battery banks without power interruption
- AFD feature prevents engine electrical damage by interrupting the field current of non-unitized alternators if switch is turned off when engine is running
- Case design allows surface or rear panel mounting
- Molded in durable reinforced polycarbonate
- Tin-plated copper studs accept 3/8''-16 (M10) ring terminals
- 7/8 in. long stud accepts multiple cable terminals
- Accepts up to 4/0 AWG battery cables
- Constructed of non-corrosive marine grade metals
- 350 amp DC continuous rating
- 600 amp DC intermittent rating
- 1,200 amp DC 30 second cranking rating
- 32 volts DC maximum operating voltage
- Accepts 14 in. (M6) mounting screws – sold separately
- 3.85 in. diameter x 3.097 in. depth
- Designed to fit most standard Perko and Guest battery switch hole patterns
- IP 66 rated against dust ingression and water intrusion
- ISO 8846 marine
- Meets UL 1500 and SAE J1171 marine ignition protection requirements
- Meets UL 1107 standards for electric power switches
- CE certified
