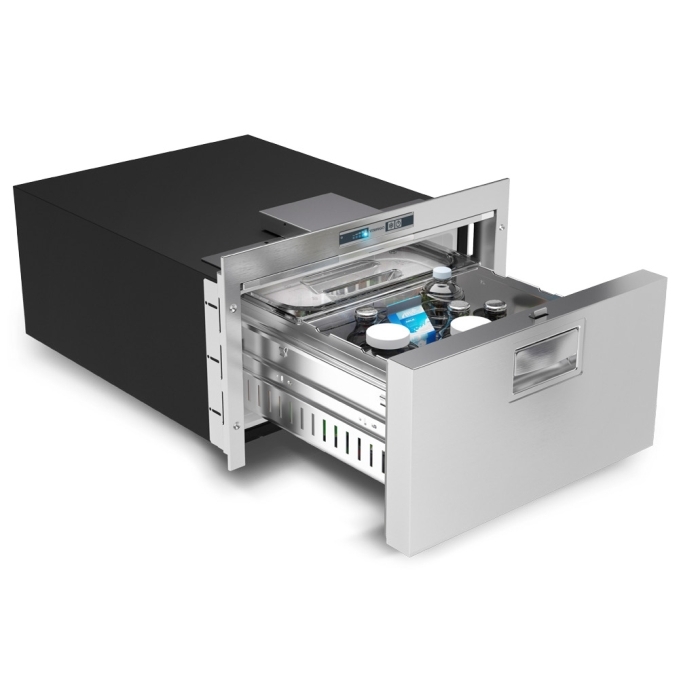

The Vitrifrigo DW35 OCX2 BTX is a compact 35-liter drawer freezer designed for marine, RV, and other built-in mobile applications where space and installation flexibility are important. Its external removable cooling unit can be installed up to 1.5 meters from the cabinet, while the stainless steel drawer, new-generation sliding rails, electronic controls, and interior LED lighting provide convenient everyday operation. A single stainless steel mounting profile supports either flush or external door positioning, while the integrated Vent Position keeps the drawer slightly open during extended periods of non-use to help reduce mold and unwanted odors.
Key Features
- 35-liter total capacity
- Stainless steel drawer front
- Drawer-style freezer configuration
- 12/24V DC operation
- External removable cooling unit
- Cooling unit can be remotely installed up to 1.5 meters away
- Electronic LED thermostat
- Touch-screen thermostat shown in manufacturer data sheet
- Interior LED lighting
- New-generation drawer slides for smooth operation
- Integrated Vent Position
- Vent Position keeps the drawer partially open during storage or extended non-use
- Flush or external door installation capability
- Single stainless steel mounting profile supports both door positions
- Built-in installation design
- Accommodates items up to 155 mm in height
- Optional 115-230V AC power supply available
Technical Specifications
- Manufacturer: Vitrifrigo
- Model: DW35 OCX2 BTX
- Product type: Drawer freezer
- Series: DW OCX2
- Total volume: 35 L
- Power supply: 12/24V DC
- Energy consumption: 690 Wh/24h
- Refrigeration technology: Compressor
- Refrigerant: R600a
- Cooling unit: External and removable
- Maximum remote cooling-unit distance: 1.5 m
- Thermostat: Electronic LED
- Door opening: Drawer
- Door finish: Stainless steel
- Reversible door: No
- Maximum internal item height: 155 mm
- Width: 498 mm
- Height: 306 mm
- Depth: 732 mm
- Net weight: 25 kg
Applications
- Marine refrigeration
- Boats and pleasure craft
- Camper vans
- Caravans
- Motorhomes
- Other built-in mobile refrigeration installations
The DW-series instruction manual specifically identifies campers, caravans, motorhomes, and pleasure craft among the intended applications.
Ideal For
- Installations needing a compact 35-liter dedicated freezer
- Boats with 12V or 24V DC electrical systems
- RV and motorhome installations
- Tight cabinetry where relocating the compressor improves installation flexibility
- Applications requiring a stainless steel drawer-style appliance
- Installations where either flush or external drawer positioning is preferred
System Compatibility
- 12V DC electrical systems
- 24V DC electrical systems
- Optional 115-230V AC, 50/60Hz to 24V DC power supply
- Designed for recessed or built-in installation
- Manufacturer instructions recommend connecting 12V or 24V DC supply directly to the battery in accordance with the supplied control-unit requirements.
Check Before Ordering
- Confirm that a 35-liter freezer is appropriate for the required storage capacity.
- Verify available installation space against the 498 mm width, 306 mm height, and 732 mm overall depth.
- Confirm whether the drawer will be installed in the flush or external position before final cabinetry layout.
- Allow for the external cooling unit and its ventilation requirements.
- The remote cooling unit may be positioned up to 1.5 meters from the freezer cabinet.
- This model operates from 12/24V DC; AC operation requires the optional power supply.
- The manufacturer requires DW-series appliances to be installed as built-in units.
- Keep ventilation openings unobstructed. For remote-motor installations, the manual specifies ventilation openings of at least 120 x 120 mm on both sides of the remote unit.
- For RV, camper, and motorhome installations, ventilation openings should communicate directly with the exterior and be protected by appropriate grilles.
- Position the appliance away from heat sources and provide sufficient airflow around the refrigeration components.
- After positioning the appliance, the manufacturer recommends waiting at least one hour before switching it on.
- Confirm the electrical supply and installation requirements on the appliance identification label before connection.
